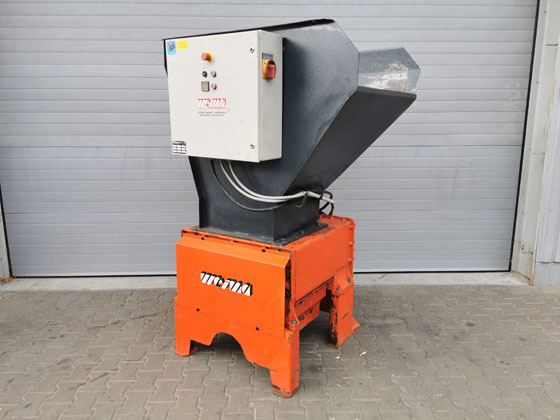

Four-shaft shredder WEIMA ZM30
Video on Youtube from the schredder test :
https://youtu.be/JIMpJlbRjmw
Power: 2 x 11 kW
Operating voltage: 400 V, 50 Hz
Funnel opening 1000 x 1250 mm
Cutting unit: 462 x 562 mm
Number of Cutters: 4
Main header: 19 mm / 1 tooth / e-Steel
Besides cutting: 12 mm / 4 teeth / E-Steel
Central rotors: approx 23 rpm / min / 4600 Nm
Outside rotors: approx 35 rpm / min / 3100 Nm
Screen size Ø : 20 mm
Hopper: strong welded steel construction
Machine feet: Solid steel construction White
Hole sieve Ø: 25 mm
Chopping power at screen hole diameter:
15-20 mm: 350-550 Kg / h
25-30 mm: 550-850 Kg / h
35-40 mm: 850-1250 Kg / h
without a strainer over 1250 Kg / h
Suction 200 mm
Overall dimensions: length x width x height: 1,300 x 1,000 x 1,970 mm
Weight: 1300 kg
|
